Venn / Euler Diagram Layer for hd Objects

Creates a Venn or Euler diagram layer that is added to an hd() object via +. The diagram is described by a list of set entries supplied via the sets argument.

Usage

hd_geom_venn(
  sets,
  series_name = "Venn Diagram",
  label_font_size = "14px",
  value_suffix = "",
  use_names = FALSE,
  show_legend = FALSE,
  legend_offset_y = 0.6,
  legend_height = 0.85,
  ...
)

Arguments

sets: A list of set entries. See Data format above. Use hd_venn_set() and hd_venn_intersect() to build entries.
series_name: Character. Series label shown in the Highcharts chart. Default "Venn Diagram". Highcharter only.
label_font_size: Character. CSS font-size for set labels. Default "14px". Highcharter only.
value_suffix: Character. Appended to each region's value label. Default "" (no suffix). static mode only.
use_names: Logical. If TRUE, display human-readable name values instead of set ids in labels and legend. Default FALSE. static mode only.
show_legend: Logical. If TRUE, render a legend beneath the diagram. Default FALSE. static mode only.
legend_offset_y: Numeric (0–1). Vertical shift of the venn grob. Increase to move diagram upward and create more space for legend.
legend_height: Numeric (0–1). Relative height of the venn grob. Decrease to allocate more space for legend.
...: Additional arguments forwarded to hd_make().

Value

An S3 object of class "hd_geom" for use with +.hd.

Venn vs Euler

Supply only the intersections that actually exist in your data. Highcharts will separate circles that share no intersection entry, producing an Euler diagram automatically. No separate geom is needed. Note: mathematically impossible layouts (e.g. three pairs all intersect but the triple intersection is zero) cannot be rendered and will error. If chart fails to display as intended, it might be due to the intersection is larger than the single sets that contain them.

Data format

sets is a list of named lists. Each element describes either a single set or an intersection between sets:

list(
  # Single sets - must have name and value
  list(sets = list("A"), name = "Animals",   value = 5),
  list(sets = list("B"), name = "Four legs", value = 4),
  list(sets = list("C"), name = "Mineral",   value = 2),
  # Intersections - sets contains two or more names, value is overlap size
  list(sets = list("A", "B"), value = 3)
)

Use hd_venn_set() and hd_venn_intersect() to build entries without typing the nested list structure by hand.

Extending the set list

Because sets is a plain R list, it can be built and extended programmatically with c() or append():

base <- list(
  hd_venn_set("A", "Animals",   5),
  hd_venn_set("B", "Four legs", 4)
)
extended <- c(base, list(hd_venn_intersect(c("A","B"), 3)))
hd(mode = "dynamic") +
  hd_geom_venn(sets = extended)

Mode differences

dynamic: Uses Highcharts' native "venn" series type. All features (labels, tooltips, interactivity) work out of the box. series_name and label_font_size are highcharter-only options.
static: Requires the eulerr package (preferred) or ggVennDiagram in Suggests. Install with install.packages("eulerr").

Examples

# Build the set list with helper constructors
my_sets <- list(
  hd_venn_set("A", "Animals",    value = 5),
  hd_venn_set("B", "Four legs",  value = 4),
  hd_venn_set("C", "Mineral",    value = 2),
  hd_venn_intersect(c("A", "B"), value = 3)
)

# Dynamic (interactive)
hd(mode = "dynamic") +
  hd_geom_venn(sets = my_sets) +
  hd_opts(title = "Animals and Minerals")

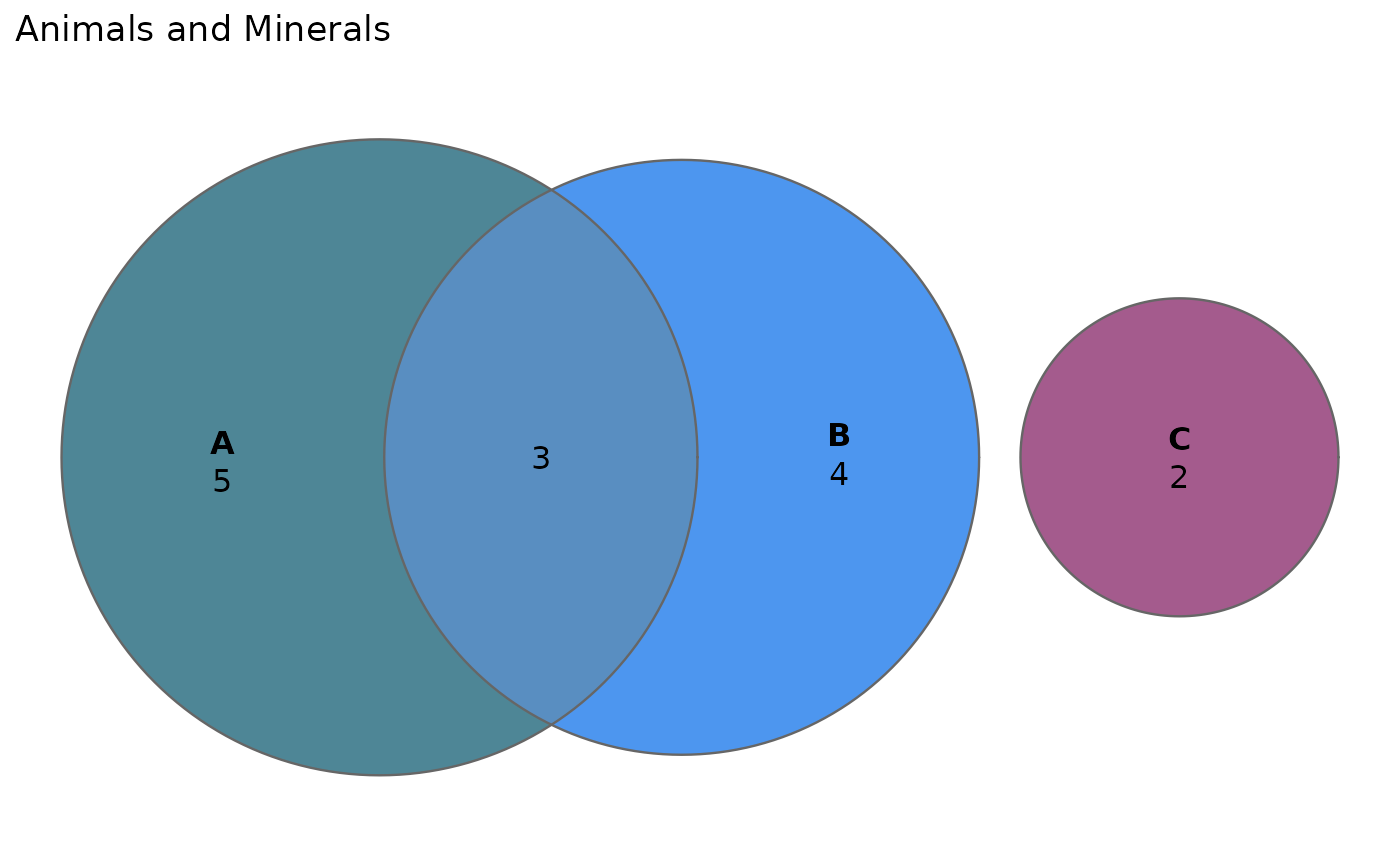

# Static - requires eulerr or ggVennDiagram
hd(mode = "static") +
  hd_geom_venn(sets = my_sets) +
  hd_opts(title = "Animals and Minerals")


# Extend a base list programmatically
base_sets <- list(
  hd_venn_set("A", "Oslo",   value = 120),
  hd_venn_set("B", "Bergen", value = 95)
)

extended <- c(base_sets, list(
  hd_venn_intersect(c("A", "B"), "Both", value = 40)
))

hd(mode = "dynamic") +
  hd_geom_venn(sets = extended) +
  hd_opts(title = "City overlap")

# Convert a data.frame to a venn set list with hd_venn_df() function
id = c("A", "B", "A,B")
name = c("Oslo", "Bergen", "Both")
value = c(80, 30, 10)
n = c(120, 95, 40)
type = c(rep("set", 2), "intersect")

df <- data.frame(type, id, name, value, n)

df2 <- hd_venn_df(df, output = "spec")
hd_make(df2, "venn", hd_opts(title = "City overlap"), mode = "dynamic")
